EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
USER’S GUIDE
EWD-H-SJ3
(V2.2)
Xi'an Excellent Electromechanical Co., Ltd.
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 1 of 16
Table of Contents
Product Overview
1、Product Appearance, inner structure and interface directions
………………
2
、
Exterior dimensions and installing diagram
………………
Installation & Adjustment
3、System Adjustment and directions
………………
Implication and Adjustment
Method of the Operation
Parameters
4
、
System Parameters Adjustment
………………
5、Explanation of the Meaning of Parameter P
………………
Indicating Code
Explanation
6、Explanation of System Normal Operation Code
………………
7、Explanation of other displaying
………………
How To Do?
8
、
Brief introductions of conditions
………………
9、How to do setting adjustment of an elevator with the known “no
load→rated load”compressing deformation？
………………
10
、
How to repeat the Autotune operation for the system
？
………………
11
、
How to modify the system output conditions after Autotune
？
………………
12、How to use 20% rated load autotune?
………………
13、Car shock rubber compression exceeds the sensor detection range
………………
14
、
On the use of "load increase, away from" working methods of
operation
………………
System Characteristics
15
、
Working principle of
“
EWD-H-SJ3
”
elevator weighing device
………………
16、Main Properties
………………
17、Technical Items
………………
Promise
………………
Others
………………
Caution: This system is applicable an elevator with「moveable car platform」.Before use, please read the following content carefully.
The Inductive magnet is specially-made rare-earth magnet for this product with strong magnetic force. Special care should be taken
during installation. Under no condition should it be away from the high temperature above 100℃ to avoid demagnetizing and the
equipment damage and personal hurt from this is beyond our responsibility.
Notice
：
Our part is just responsible for the products quality in the guarantee period under any condition.
Declaration：Our company reserves the right of changing products for technical improvement and the related technical parameters
should be referred to the USER’S GUIDE along with the products.
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 2 of 16
Product Overview
1、Product Appearance, Interior Structure and Interface Directions：
EWD-H-J5
Appearance
Interior
Structure

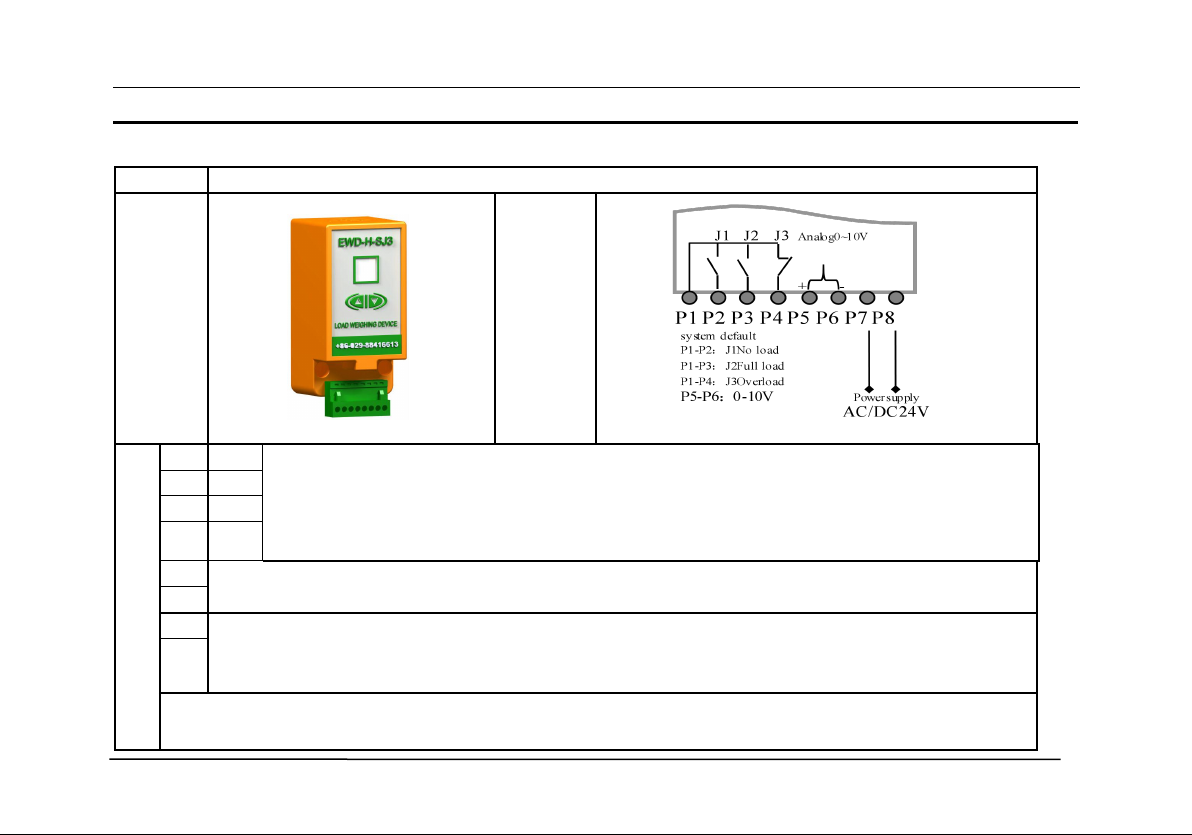

Interface Directions
P1
Com
Common terminal
J1,J2,J3, is 3 channel Solid State Relay Output
P2
J1
P3
J2
P4
J3
P5
Analog 0-10v
P6
P7
System Power Source：DC/AC24V(±10%)／150mA
Absolutely not to connect the output terminals of this device except“P7、P8”to exterior
power source directly, and the permanent damage from this is beyond our responsibility.
P8
1.J1～J3 are interior solid state relays with Max. loading capacity of DC/AC 32V/50mA。
2.To be programmed as “no load～over load”output signal to participate in elevator logic control.
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 3 of 16
2、Exterior Dimensions & Installing Scheme

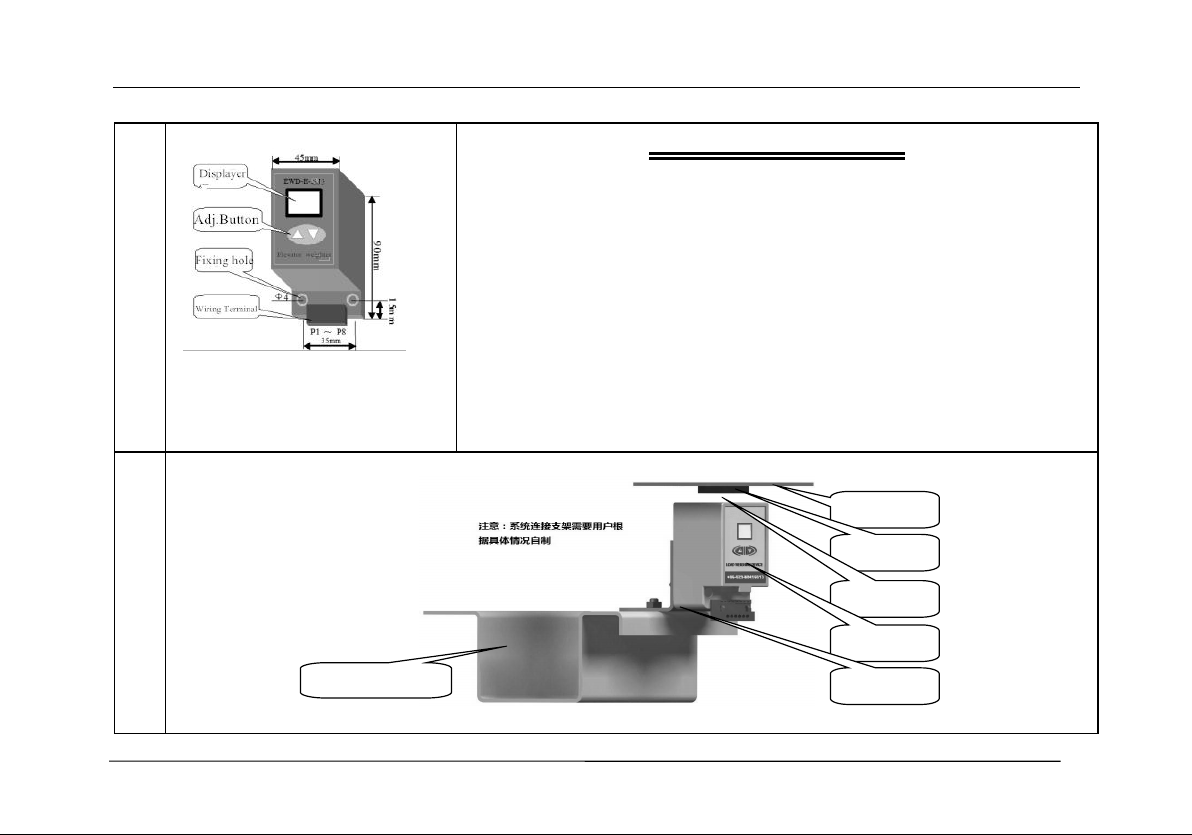

Exterior Dimension
Notice on Installation
1.Install this device as near as possible to the center of elevator car
platform or the original place of elevator overload switch. The system
should be installed on the bottom bearing beam of elevator car
platform with the inductive magnet adhering to the moveable car
platform and the marking surface facing to the inductive point of the
weighing device.
2.The system supporting frame should be made according to elevator
concrete situation with the uneasily deforming material of thickness more
than 4mm or with enforcing plate to avoid swaying.
3.Adjust this device so that the car platform magnet aiming to the center
point of its upper section. Meanwhile, assure that the section of this
device parallel to that of the magnet.
Installing Method
电梯下承重梁
活动轿底
感应磁铁
检测间隙
称重装置
连接支架
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 4 of 16
3、System Adjustment and Directions

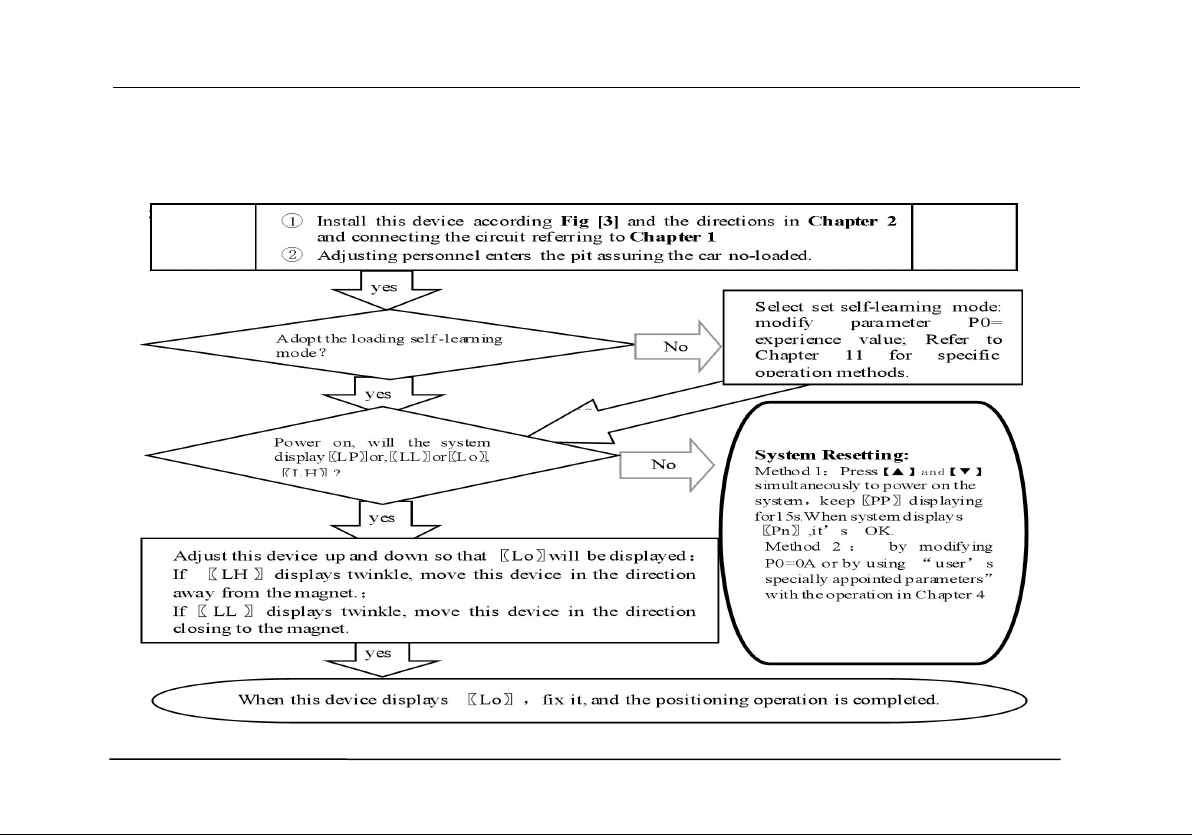

①System Positioning Operation：
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 5 of 16

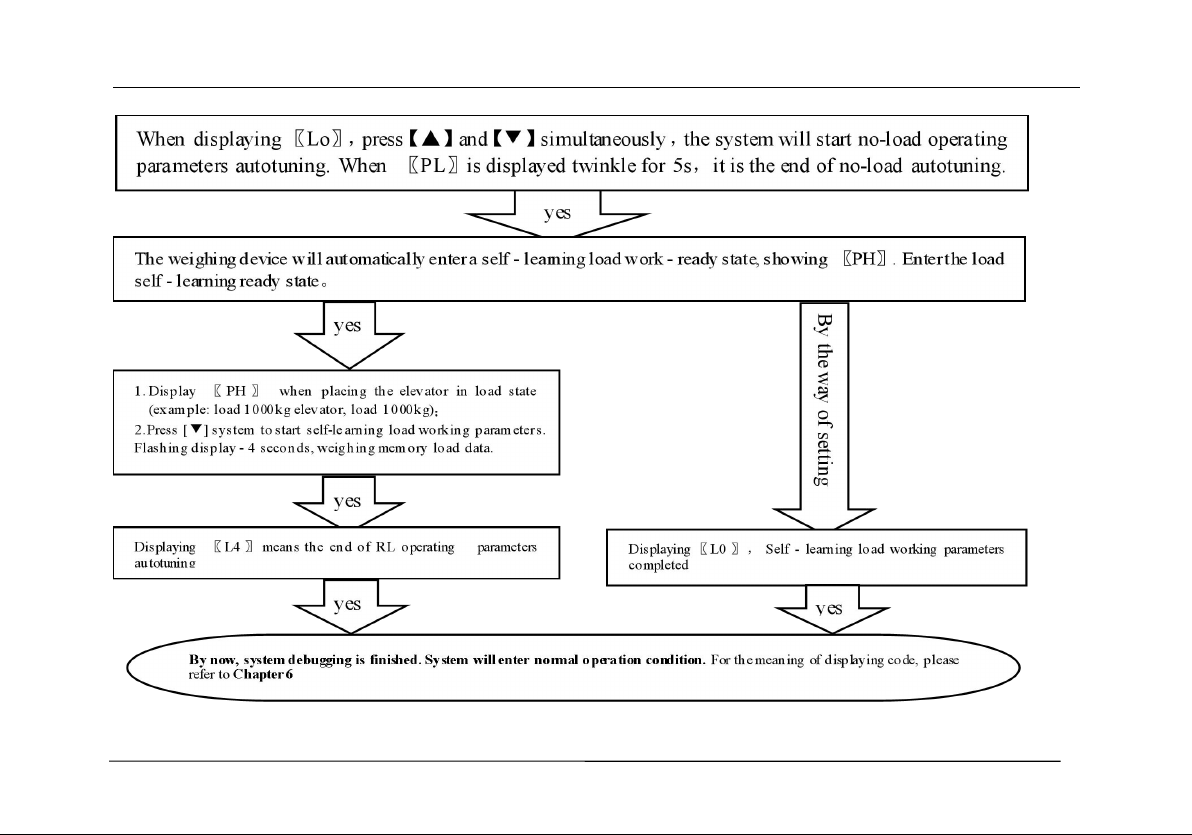

② No load and Rated Load Operation Parameters for Autotuning：
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 6 of 16
① System Adjustment under other conditions：
For the following reason，it is necessary to modify the operating parameters of this device.
①For elevator car decoration change，the dead weight of the moveable car platform changes；
②The car platform appears mechanical deformation；
③The temperature difference between winter and summer has an unneglecting effect on the elastic coefficient
of car platform damping rubber；
④The car platform appears damping rubber appears aging or deforming；
⑤The elevator overruns at the top or at the bottom；
⑥The weighing device becomes slack at the fixing end.
Operation Parameters Adjustment and the Implication
4、System Operation Parameters Adjustment (Annotation：* represents for a hexadecimal value
of “0～9,A～F”)
①Simultaneously press 【▲】and【▼】on system control keypad to power on ，this moment 〖PP〗 will be
displayed aglimer, that means entering operation parameters modifying status.
②Release【▲】and【▼】buttons，system will display〖P*〗and〖**〗alternately. 〖P*〗is an indication of
system operation parameters；〖**〗is the interior data value of〖P*〗.
③When displaying〖P*〗，press【▼】，indication of system operation increases；press【▲】，indication
decreases.
④When displaying〖**〗，press【▼】，data value increases；press【▲】，data value decreases.
⑤Release buttons，system displays operation indication and configuring data alternately.
⑥To modify other configuring datum, repeat the operation in item 3, item 4, item 5.
⑦At the moment when system displays〖P*〗，Simultaneously press【▲】and【▼】，system will save modified
datum for future use. This moment, system displays〖Pn〗 for 1 second. System operation parameters modification
of this time is completed.
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 7 of 16
Example：Modify parameter P2 to 16；
①Simultaneously press 【▲】and【▼】on system control keypad to power on ，this moment 〖PP〗 will be
displayed twinkle alternatively, that means entering modifying status.
②Release【▲】and【▼】buttons，the weighing device will alternately show [P0] and [**];
③When displaying〖P0〗，press【▼】to increasing it to〖P2〗；
④Release button【▼】，system alternately displays〖P2〗and〖**〗；
⑤When displaying〖**〗，press【▲】and【▼】to regulate its value as〖16〗；
⑥Release button，system alternately displays〖P2〗and〖16〗；
⑦At the moment when system displays〖P2〗，Simultaneously press 【▲】and【▼】，system will save modified
datum for future use. This moment, system displays〖Pn〗for 1 second. System operation parameters modification
is completed.
5、Implication of parameter P：
①Directions of Parameter P0 [System Operation Mode]：：
Setting
Explanation
Default Setting
Normal Value
00
Normal Operation
01
00
This value is
automatically
corrected in
the
self-learning
process of the
01
Sensor installation positioning, weighing device self-learning "empty and
rated load" mode
02
Specified weighing device self-learning "empty-load" mode of operation
03
Specified weighing device self-learning "rated-load" mode of operation
04
Select "20% load" self-learning, working mode, convenient users special
debugging mode
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 8 of 16
weighing
device
25～
99
×
0.1mm
For elevator with known “ no-load → rated-load ” compressing
moveable car platform damping rubber pad，it may be set manually. The
system may be put into use after system installation positioning. (This
adjustment is very convenient for elevator manufacturers. For more
detail, refer to Chapter 0.)
②Directions of Parameter P1
Setting
Explanation
Default Setting
User
Setting
00、01
10、11
Higher bit
Lower bit
00
Cascade
output,0~10V,P5
and P6Analog
output
0-Cascade output mode
0.-P5 and P6 ports are “10-0V” Analog output
③Directions of Parameter P2 [Light-load parameter setting]：
Setting
Explanation
Default Setting
User Setting
00～30
Light load signal output.
05
④Directions of Parameter P3 [Half-load parameter setting]：
Setting
Explanation
Default Setting
User Setting
P2+1～60
Half-load signal output
30
⑤Directions of Parameter P4[Heavy-load parameter setting]：
Setting
Explanation
Default Setting
User Setting
P3+1～90
Heavy-load signal output
70
⑥Directions of Parameter P5 [Full-load parameter setting]：
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 9 of 16
Setting
Explanation
Default Setting
User Setting
P4+1～99
Full-load signal output
90
⑦Directions of Parameter P6 [System overload coefficient]：
Setting
Explanation
Default Setting
User Setting
00～20
Overload > load +(load ×P6) %, overload output signal
05
⑧Directions of Parameter P7 [Operation Status setting of Solid state relay“J1”]：
Setting
Explanation
Default Setting
User Setting
00～1F
Light load motor output
01 Light-load action close
⑨Directions of ParameterP8 [Operation Status setting of Solid state relay “J2”]：
Setting
Explanation
Default Setting
User Setting
00～1F
Full load motor output
04(Full- load dynamic close)
⑩Directions of Parameter P9 [Operation Status setting of Solid state relay “J3”]：
Setting
Explanation
Default Setting
User Setting
00～1F
Over load motor output
1F(Over- load dynamic close)
⑪Directions of Parameter D [Displacement-expanding Setting]：
Setting
Explanation
Default Setting
User Setting
01
Close displacement, 10mm effective
01
Note: ① If the setting value is not specified, the weighing device will not work normally.
②During the regular maintenance of the elevator, the self-learning work of the weighing device should
be carried out again.
Explanation of Displaying Code:
6、System Normal Operation Code: (“W”is the present effective load)
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 10 of 16
Display Code
Indication
System
displays
〖L*〗
L0
No-load car
Output No-load signal
No-load：00≤W≤Rated-load×P2％
L1
Light-load car
Output Light-load signal
Light-load：No-load <W≤Rated-load
×P3％
L2
Semi-load car
Output Semi-load signal
Semi-load ： Light-load <W ≤
Rated-load×P4％
L3
Heavy-load car
Output Heavy-load signal
Heavy-load ： Semi-load <W ≤
Rated-load×P5％
L4
Rated-load car
Output Rated-load signal
Rated-load ： Heavy-load <W ≤
Rated-load + Rated-load×P6％
LF
Over-load car
Output Over-load signal
Over-load：W> Rated-load
For user to save：the code of this elevator
Rated-load Compression: ㎜
7、Code for Other Operation and Failures
Display
Code
Indication
Solution
1
YS
System Startup
2
Pc
System Resetting
3
PP
Get into the status of operation parameters modification
4
PL
Self-learning no-load parameter (static display indicates ready state, flashing display
indicates complete detection)
5
PH
Self-learning rated-load parameter (static display indicates ready state, flashing display
indicates complete detection)
6
LL
Installation and
Too big Positioning
Move this device closing to the magnet
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 11 of 16
Display
Code
Indication
Solution
positioning
7
LH
Too small
Positioning
Move this device away from the magnet
8
Lo
Accurately Position
9
LP
Interior Auto Correction
10
P*
System Configuration Indication
11
Pn
Saved
12
EA
Saving Failure
Modify the operation parameters
13
EJ
Without this system setting
Check system setting value
14
ED
Car platform deformation deficient
Affirm elevator in the condition of rated load
15
EC
Car platform deformation overflowing
Damping rubber is too soft，adjust PD
16
EH
Incorrect installation place of the magnet
Check the magnet installation place
17
EL
Incorrect installation place of the magnet
Check the magnet installation place,pay special
attention to polarity and distance.
How to do？
8、Brief Analysis of Other Conditions：
①After installation of this weighing device, weighing signal changes in the course of operation？
The elevator load output value is not held after elevator starts, adjust the relative items of the inverter and
controller.
②After long-term of operation, system no load zeroing point appears larger deviation？
May be caused by the reason described in section 3,Chapter 3. Set system Autotuning mode to calibrate again
③After the elevator weighing is changed from heavy load to light load, heavy load signal is still displayed？
The movement of the moveable car platform is blocked, it is not reset after pressing. Solute the relevant
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 12 of 16
mechanic problems.
④System output signal doesn’t change linearly along with the change of load？
Check the structure of the moveable car platform ， pay more attention that there should only be one pair of
damping rubber or spring moving relatively to the moveable car platform.
⑤During the system operation, analog output is abnormal or system resetting or speed-regulator cooperation is
abnormal？
It may be caused by system power source series interference. Select another group of power to supply the system,
or to provide an exterior power of AC/DC 24V/300mA to supply.
9、How to set an elevator with known “no-load→rated load”compression deformation？
For example：The max “no-load→rated load”compression deformation of this elevator is 5.8mm.
Operation
⒈Modify“P0=58”and save it. Refer to chapter 5；
⒉After system restarting,〖LP〗is displayed. Wait until〖LL〗,〖Lo〗or〖LH〗 is displayed；
⒊When the car is empty，adjust system installation position to make it display〖Lo〗，fasten it；
⒋When〖Lo〗is displayed，press【▲】 and 【▼】simultaneously，system begins to autotune no-load
operation parameters；
⒌Flashing shows 〖PL〗5 seconds later, All the self-learning work has been completed.
10、How to do Re-Autotune operation for system?
Method 1：Simultaneously press
【▲】and【▼】
on system control panel to power on. This moment, system aglimmer
displays〖PP〗and 〖P-〗.Keep 15 seconds，system will display〖Pn〗.On that occasion，all operation parameters
reset to default settings.
Method 2：Modifying parameter P0=0A or user specified operation code will reset system immediately to default
status. But for users with specified code. The method is mentioned in Chapter 5.
11、How to modify output status of a system after autotuning is finished？
Modify the corresponding controlling parameters of parameter P respectively. The method is mentioned in
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 13 of 16
Chapter4.and 5.
12、How to adopt 20% rated load for rated load autotune？
Modify P0=04. After〖Lo〗positioning and no-load〖PL〗autotuning，in the period of system displaying〖PH〗，
load 20% of the rated load，press【 】，system displaying 〖L1〗means the end of adjustment. This is an auxiliary
method when 100% autotuning can be done.
13、The compression of car damping rubber exceeds the sensor inspection range？
Before autotuning, be assure to select “PD”=“02/03”and save it. Then, readjusting the installing position of the
sensor is OK (See parameter PD for more details).
14、On adopting operation of “load increasing，displacement aloofing”method？
Before autotuning, be assure to select “PD”= “1*” and save it. Then, readjusting the installing position of the
sensor is OK.
System Characteristics
15、Working principle of “EWD-H-SJ3”elevator weighing device
With the constantly development of elevator technology, the impact of elevator weighing device on elevator
performance can not be neglected. The requirement of elevator for weighing devices with high accuracy, high
reliability and multi-functions becomes extremely urgent. Presently, the progress of sensor technology and
microcomputer is ceaseless. With the adoption of highly accurate Hall sensor，the change of displacement along
with car platform load can be checked. Meanwhile, with the adoption of single chip microprocessor, scientific
calculation can be done，making this device weigh the elevator car load effectively. With the cooperation of EWD
－AL1 remote signal transferring device, analog or digital signal can be transferred far away, largely enlarging the
user’s application range and decreasing the additional cost in the course of use.
16、Main property
⑴Working in a contactless and inductive way. No mechanical movement. Solid-state relay outputs. Being directly
installed in the original place of overloading switch. No necessity of changing the mechanism of elevator car.
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 14 of 16
⑵ The whole system is designed in the waterproof structure with small overall size, easy installation and
adjustment and simple structure.
⑶ Wide induction range, high accuracy positioning, intelligent temperature compensation making the range of
operating temperature wider.
⑷ The inner core consists of Hall sensor of high accuracy and single-chip microprocessor of high efficiency. All
parameters may be set on the field.
⑸ Adopting strong inductive magnet, improving the anti-interference capability of the system to the utmost.
⑹ Each set of products undergo a rigorous aging process to ensure reliable work.
(7)System based on mathematical equations for scientific computing, automatic detection error correction
⑻ On-site adjustment is easy, either by autotuning or by manual displacement setting.
(9)The independent development of the programmable output signal control method can be used for all kinds of
traction elevator with moveable car platform.
17、Technical specifications：
⒈
Application
Being applicable to all moveable car platform elevators，with an auto inspection
range of (2.00mm ≤ car platform movement ≤ 10.00mm) ； manual setting
displacement range 2.5～9.9mm (relate to parameter PD)
⒉
Sensitivity
Elevator rated load/200 (With the rated load of 1T, it is 5.0Kg)
⒊
System Error
≤1.5％(-20～55℃)
⒋
Non-Linearity
≤1.0％
⒌
Output
Mode：
Solid-state
Relay
Programma
ble
universal
signal
①3/5 channel programmable output modes are: No load, light load,
semi full load, heavy load, rated load, overload (customer may set the
changing range freely).
② Each channel can be programmed as dynamic Close or Open
contact.
③Contact Capacity:DC/AC 32V/15mA。
EWD-H-SJ3 User manual for technical documents of intelligent elevator weighing device[V2.2]
Page 15 of 16
6
Working
Temperature：
-20～55℃
7
Relative Humidity：
20%～99％RH
8
Reaction Time
≤0.25 Seconds
9
Power Supply：
AC/DC 24(±10%)V／150mA
10
Installation Place：
Moveable car platform of elevator
11
Overall Size：
45×45×90 mm3
： The intension exceeding the limit parameters listed above may result in the abnormality or permanent
damage to the system.
Promise
⑴If this system appears any quality problem of product itself in 1 year after delivery, it will be replaced freely
（damage of the product seal will not be dealt with）。
⑵For any requirement of special functions, make it out by mail.
⑶Any system abnormality in adjustment or operation, please contact our company directly.
Others
1.Accessory
User’s Manual
1 piece
Fixing Screw set
2 sets
Inductive magnet [20×20×4mm3]
1 piece
2..address book：
029-88416613 /85565714/85568478
7D ， Block A, Olympic Building, 14th Chang
An North Road, Xi'an
029-85565714-886
710061
Technical support:008618092639752/008618092639750
